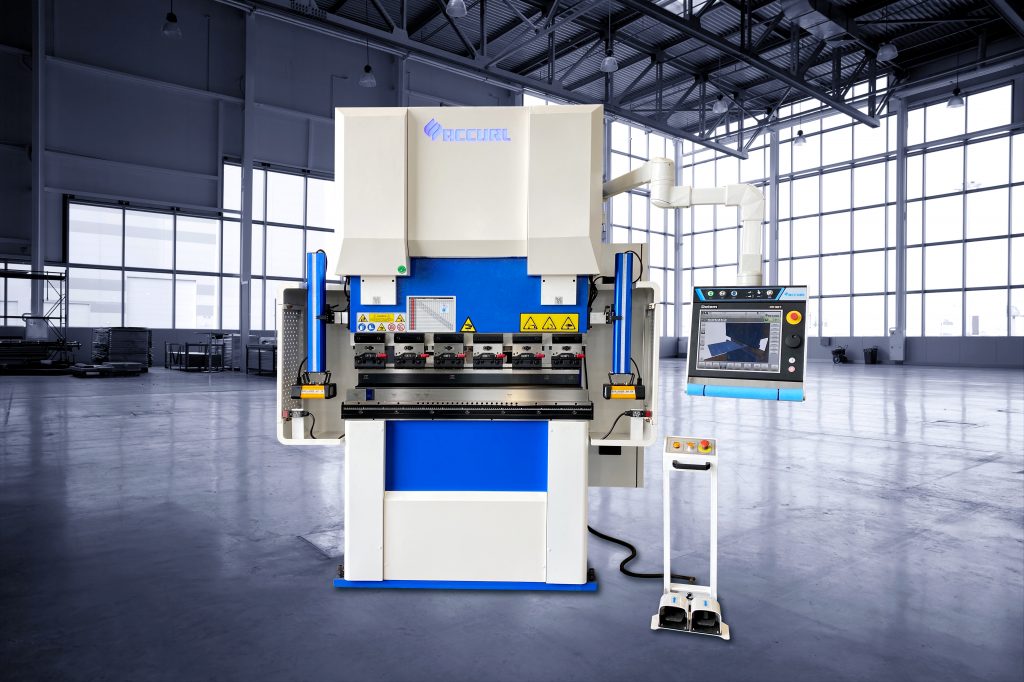

Accurl 4axis 2500mm full-electric press brake bending machine

The eB-Brake features the advantages of high acceleration, deceleration and fast response times of the servo-electric drive system. Compared traditional press brakes considerable productivity increase can be reached; reduction of cycle times by up to 30 % and more is the reality.

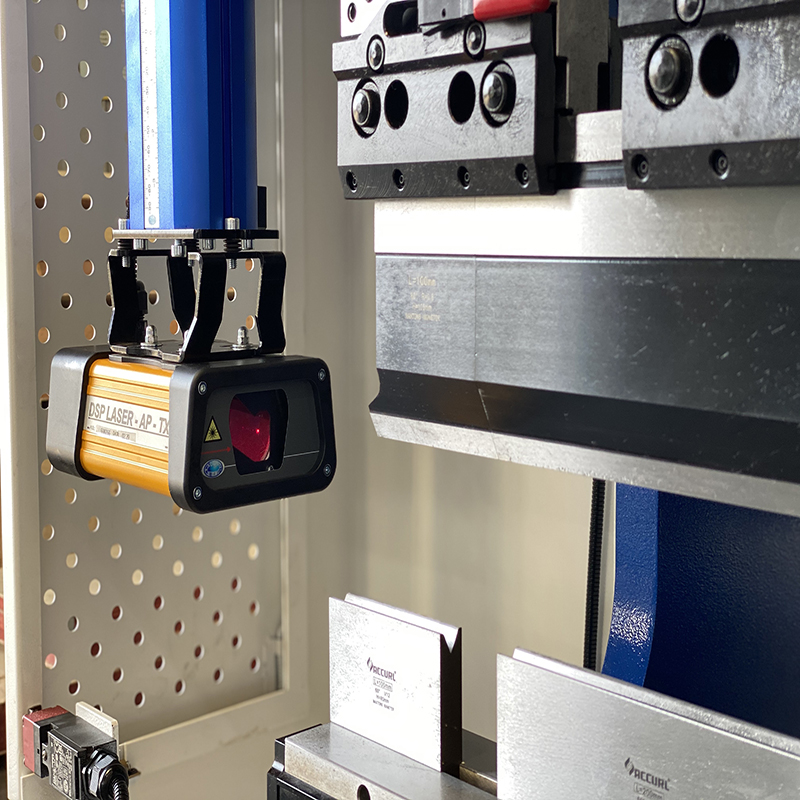

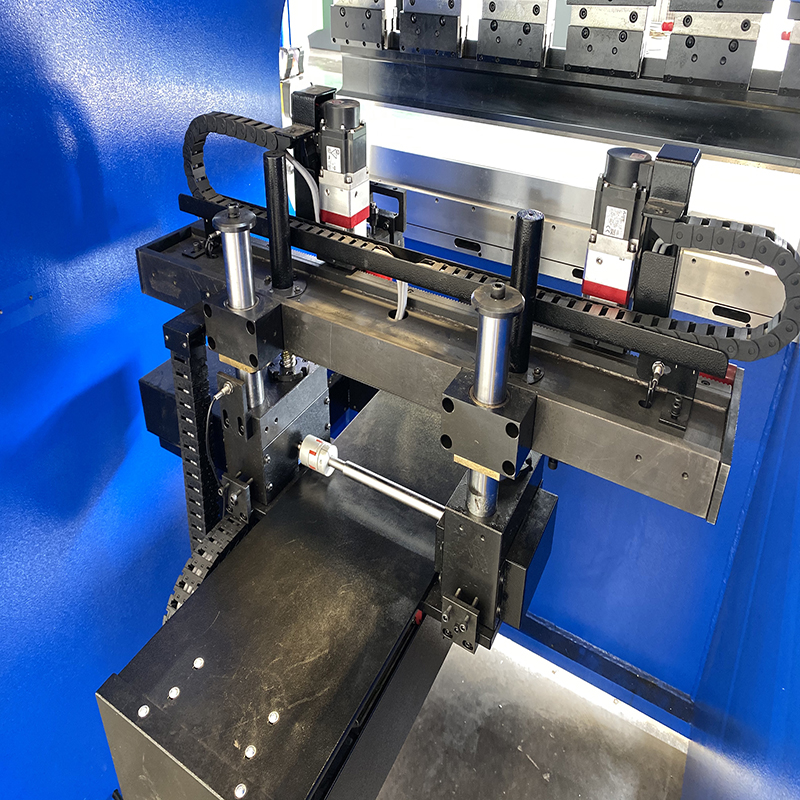

Working speed is programmable to ensure bending is made without loss of product quality or operator safety. Laser Safe’s IRIS System provides safe high speed closing down to just 2 mm. Compared with other guarding systems or even unguarded machines, the block laser system can save up to 2 or more seconds per cycle.Fast positioning speeds ensure the back gauge will be ready when the part is presented for each operation.

Different machines can have different maximum speed (fast approaching speed) but this does not have direct influence in bending time cycle. Time cycle of eB-Brake is always the best even if compared to a machine that on the catalogue seems to be fast; the excellent dynamic and total absence of dead phases makes the difference.Here a direct comparison among different press brake.

For each machine series is no limit to the number of sub-models you can enter.	EXAMPLE	EXAMPLE	EXAMPLE	List first model here	List second model here	List second model here	List second model here
	eB ICON SERIES	eB ICON SERIES	eB ICON SERIES	eB ICON SERIES	eB ICON SERIES	eB ICON SERIES	eB ICON SERIES
	eB ICON B0825	eB ICON B1235	eB ICON B1340	eB ICON B2040	eB ICON B2060	eB ICON B2585	eB ICON B30125


Select from list	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Enter country where the machine is manufactured**	CHINA	CHINA	CHINA	CHINA	CHINA	CHINA	CHINA

Please enter values as whole numbers only. Do not use decimals, commas, or any other symbols.
Enter value in mm	800	1250	1300	2050	2050	2550	3100
Enter value in tons	25	35	40	40	60	85	125
Enter value in mm	680	1050	1150	1850	1850	2350	2800
Enter value in mm	370	420	420	420	420	470	500
Enter value in mm	100	140	140	140	150	150	300
Select from list	C-Frame	C-Frame	C-Frame	C-Frame	C-Frame	C-Frame	C-Frame
Enter value in mm	200	260	400	400	355	400	460
Enter value in mm per second	210	210	205	205	180	165	140
Enter value in mm per second	10~20*	10~20*	10~20*	10~20*	10~20*	10~20*	10~20*
Enter value in mm per second	200	200	200	190	175	155	120
mm	2000	2500	2000	2500	3200	2500	3200
KN	250	350	400	400	600	850	1000
(L x W x H) (mm)	2545x1510x2050	2950x1510x2080	2555x1600x2130	2960x1600x2180	3740x1600x2230	2980x1650x2330	3740x1650x2355
kw	4	4	5.5	5.5	5.5	7.5	7.5
T	3	3.5	3.8	4.2	5.2	6.3	7
